IP65 Wall mount box for Water heater

Switches & sockets

SKU

BENEFITS

  • With Bipolar Rocker switch
  • The product is designed for controlling and turning on and off the heater, or variety of devices that require the ability to turning on and off outdoors
  • The product is suitable for outdoor installation IP55

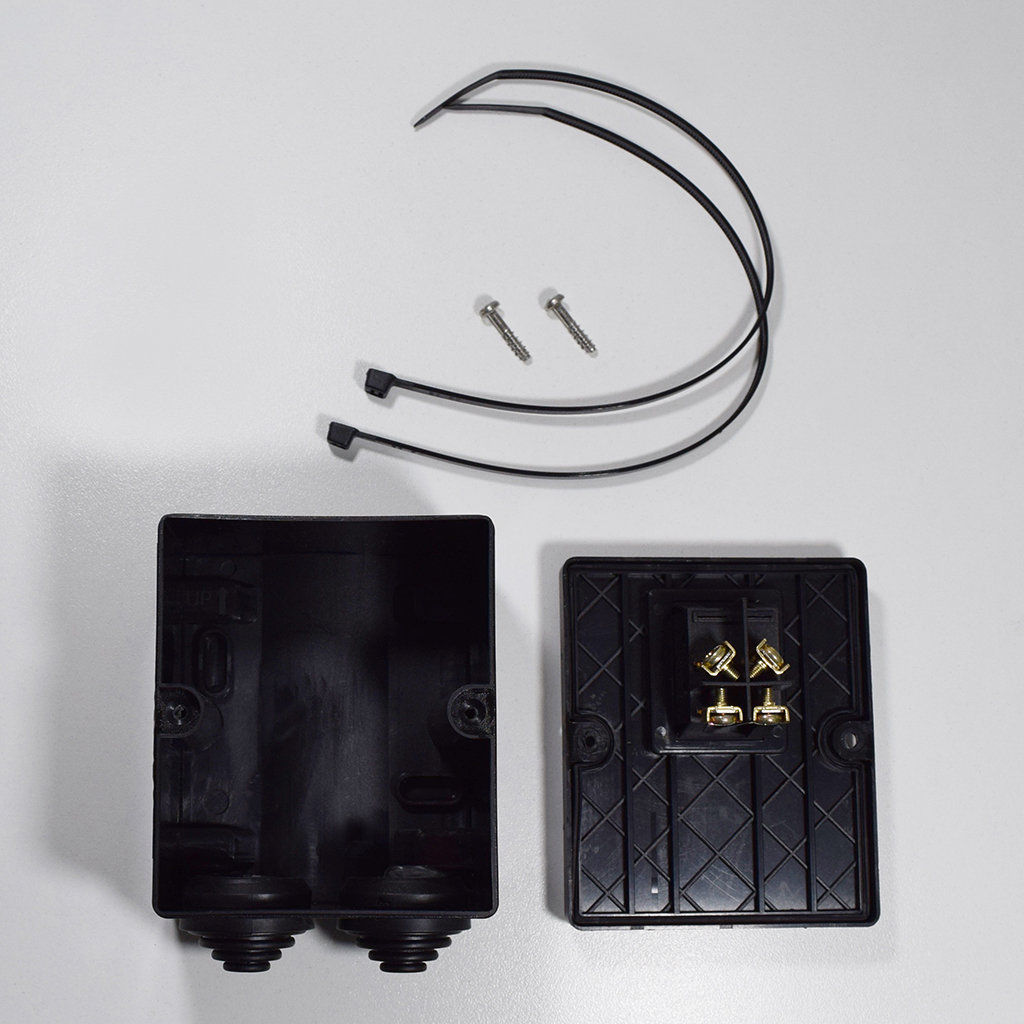

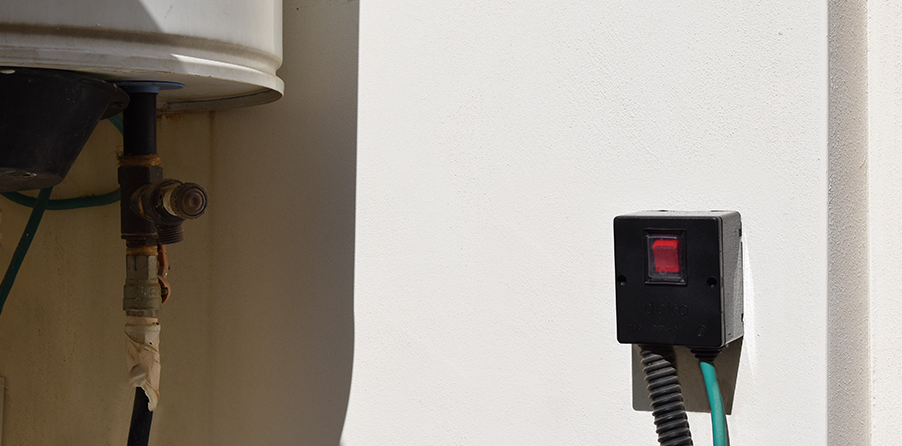

  • The product can be installed on a pole, heater or water boiler, comes with a dedicated clamp
  • Equipped with illuminated bipolar rocker switch for greater protection from electrocution
datasheets   download icon

MORE DETAILS

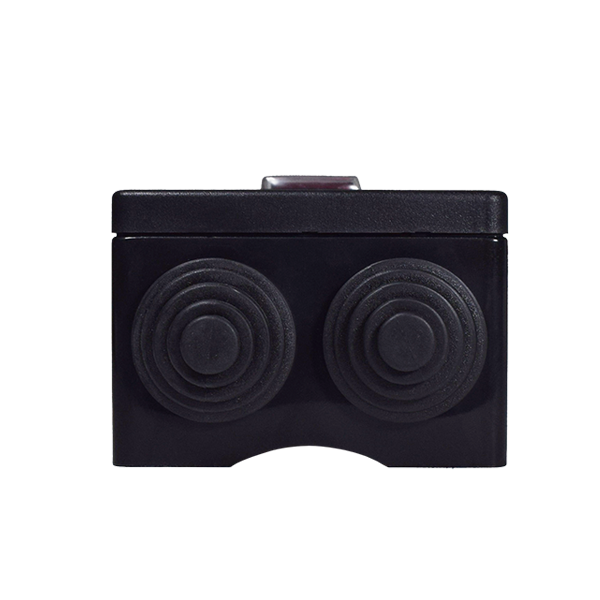

Max operation voltage: 230VAC Max current: 16A Max Wattage: 3600W IP rate: IP55 Materials: Cover of box: PC Polycarbonate Base of box: PC Polycarbonate Cover of switch: PVC+UV res Installation: There are two installation options: Installation on a pole using two designated clamps Installation on the wall (Wall mount) In both options, wiring the product to electricity is done through two nipples on the bottom side of the product Tools for installation: Phillips screwdriver. Compatible Countries: Universal.

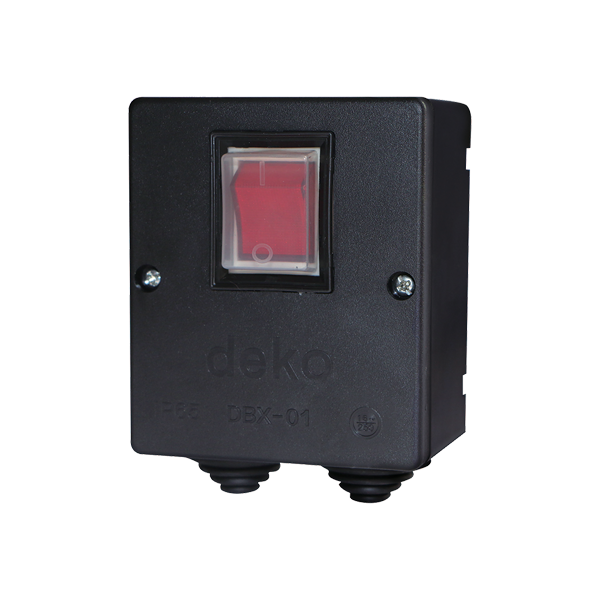

prosuct image

sketches

prosuct skecth
datasheets   download icon

Technical Details

Catalog No Model Color Weight Unit packing Quantity
DBX01090507 DBX Black 0.12 Shrink 50
DBX02090507 DBX White 0.12 Shrink 50
