Modular Surface mount IL socket Titan

Switches & sockets

SKU

BENEFITS

  • For use when required connecting appliances to power sockets where no connection Is available
  • Suitable for internal installation in buildings, rooms, offices, warehouses and such
  • Suitable for permanent or temporary installation
  • Ability to connect to power from 4 different directions
  • Ability to Concatenation several in sequence simply and modularly
  • The products are provided with an adapter for canal
datasheets   download icon

MORE DETAILS

Operating voltage: 230VAC Max current: 16A Poles: 2P+E (Phase L, Neutral N, Earth PE) IP rate: IP20 Materials: Cover: PC Polycarbonate Base: PC Polycarbonate Socket contacts: Brass (approx. 70% copper) No. of sockets: 1 socket Installation: Installation on the wall (surface mount) There are two installation options: 1. Ability to connect to power from 4 different directions 2. ability to Concatenation several from same series in sequence simply and modularly Tools for installation: Phillips screwdriver, slot screwdriver Certification: SII Approval Country: Israel, Palestine

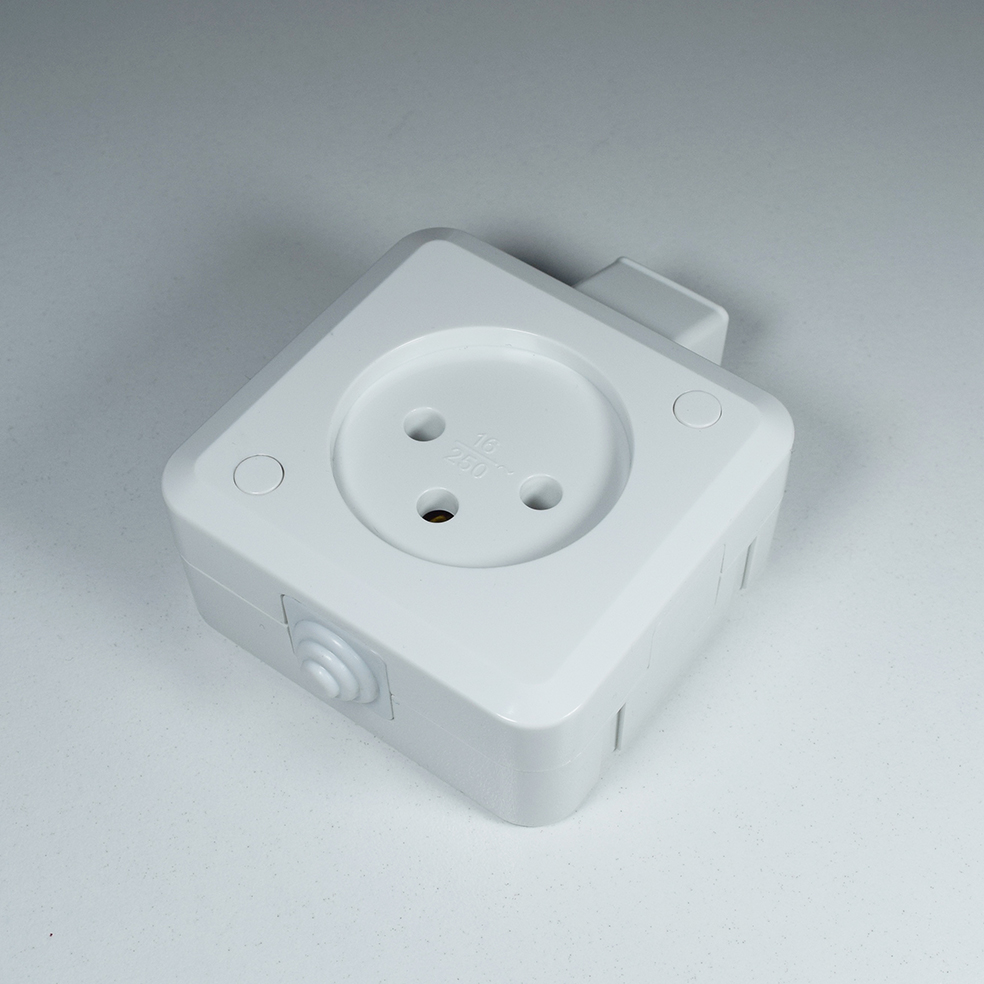

prosuct image



sketches

prosuct skecth
datasheets   download icon

Technical Details

Catalog No Model No. of sockets Color Quantity
DSM10100020 DSM-1 1 White 20
